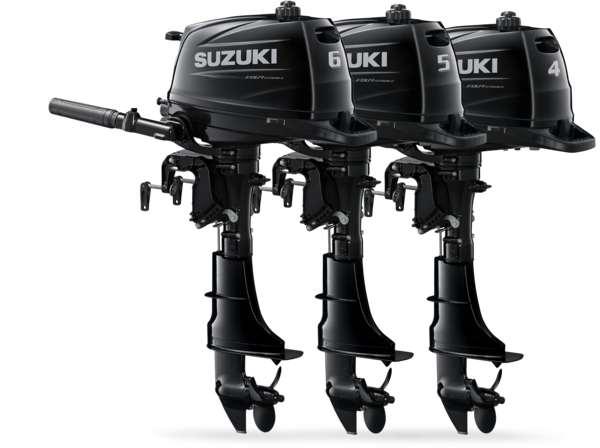

Compact and lightweight (24.0Kg*1)—Easy operation characteristic of portable outboards DF6A, DF5A and DF4A. A new generation fully reborn with style.
More compact and much lighter
While maintaining the engine displacement of 138cm3, the conventional design has been overhauled and downsized to realise 1.0kg weight reduction (24.0kg*1). The lighter weight has improved operability.
Along with weight reduction, the carrying handle integrated into the lower cover which has been rounded and made easier to hold, and an additional grip at the front further improve its portability.
While maintaining the engine displacement of 138cm3, the conventional design has been overhauled and downsized to realise 1.0kg weight reduction (24.0kg*1). The lighter weight has improved operability.
Along with weight reduction, the carrying handle integrated into the lower cover which has been rounded and made easier to hold, and an additional grip at the front further improve its portability.
Enhanced user-friendliness
The overhead integral fuel tank and the new lubricating systems allow transport and storage of the outboard on any of three sides (port, starboard, or front) without leakage of fuel or oil.
Because the overhead fuel tank is placed right above the carburettor, it also allows gravity fuel supply, enabling the engine to start instantly right after filling fuel, even after long-term storage. These features have enhanced its user-friendliness as a portable outboard motor.
The overhead integral fuel tank and the new lubricating systems allow transport and storage of the outboard on any of three sides (port, starboard, or front) without leakage of fuel or oil.
Because the overhead fuel tank is placed right above the carburettor, it also allows gravity fuel supply, enabling the engine to start instantly right after filling fuel, even after long-term storage. These features have enhanced its user-friendliness as a portable outboard motor.
Technology Detail
Lightweight
In addition to a reincarnated stylish appearance, the newly designed and developed Suzuki DF6A,DF5A and DF4A boast the unrivaled lightweight, 24.0Kg (S-shaft models).
The lighter weight has improved portability as well as operability.
Outstanding Handle Operation
An ease of handling that has enjoyed great popularity. Further improvements to the tiller handle have successfully mitigated vibrations contributing to fatigue and stress when transmitted to the hand during operation. The DF6A, DF5A and DF4A particularly excel at vibration mitigation in the mid-range.

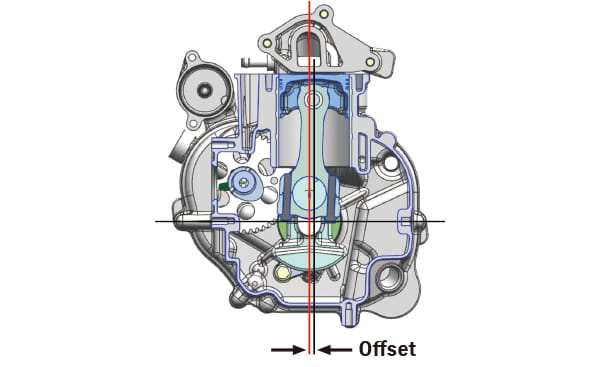

Offset Crankshaft
Positioning the crankshaft slightly off center of the cylinder reduces lateral pressure against the cylinder wall as the piston moves up and down in the cylinder. The result is smoother piston movement, which improves operating efficiency.

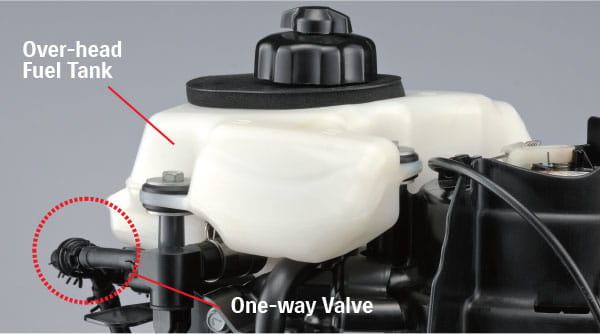

Easy After-Storage Start
Because the integral overhead fuel tank and one-way valve allow gravity fuel supply, the engine can be started without opening the engine cover, even after longterm storage.

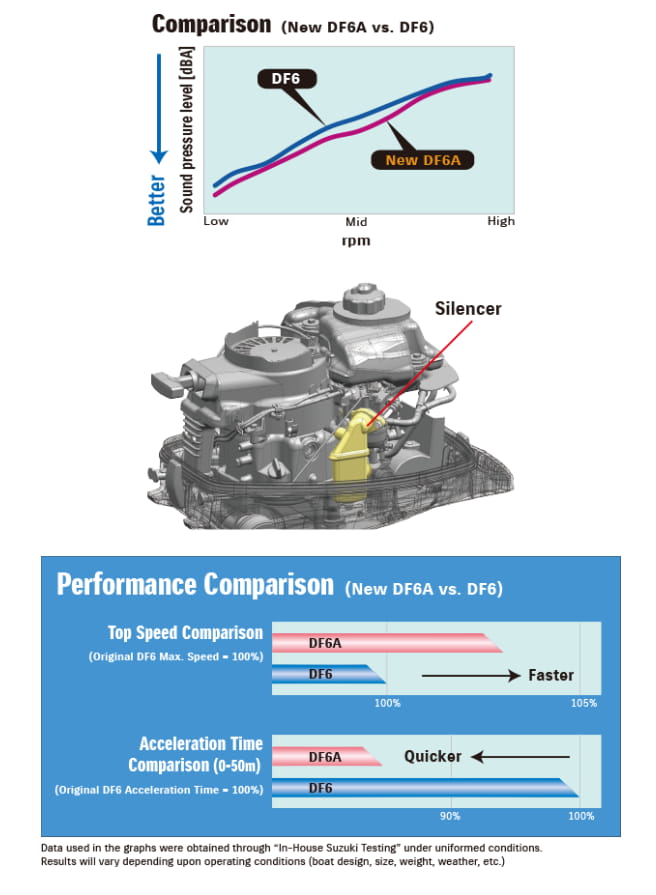

Quiet Operation
The low noise level is the result of a silencer, designed to optimize the capacity and shape of the air intake. The new design of the rocker arm and the plane bearing of the crankshaft also help reduce the noise level. We also changed the structure of the parts related to the rocker arm and eliminated its excessive play. In addition, we changed the crankshaft bearing from a common ball type to a plane type.

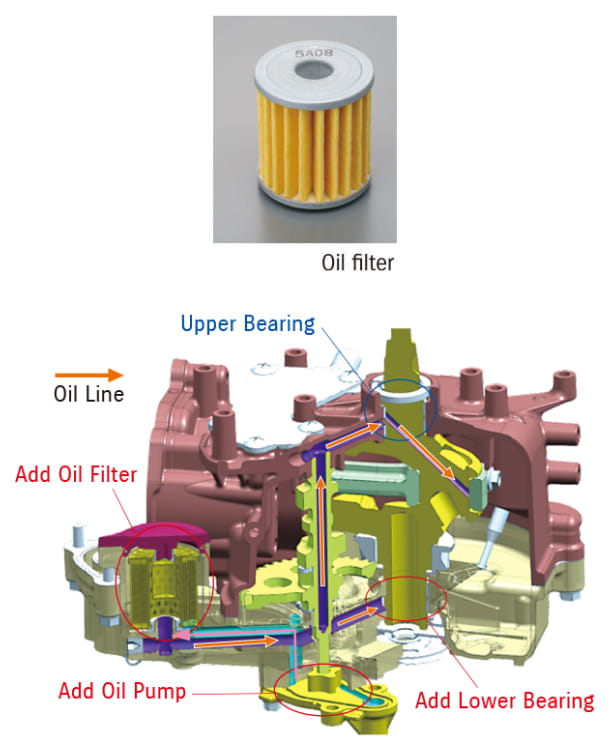

Highly Reliable Lubricating System
The forced lubrication system of the DF6A, DF5A and DF4A has an additional oil passage to the upper and lower crankshaft and connecting rod big end. The addition of a first-in-its-class** oil filter greatly increases the reliability of the lubricating system. Furthermore, the new position of the oil window allows for visual confirmation of the actual lubricating condition.
Suzuki Anti-Corrosion System
Suzuki protects the outboard's exterior from harmful corrosion with its own specially formulated anti-corrosion finish. Applying the finish directly to the outboard's aluminum surface, allows maximum bonding of the finish to the surface to increase durability and help protect parts that are constantly exposed to saltwater.

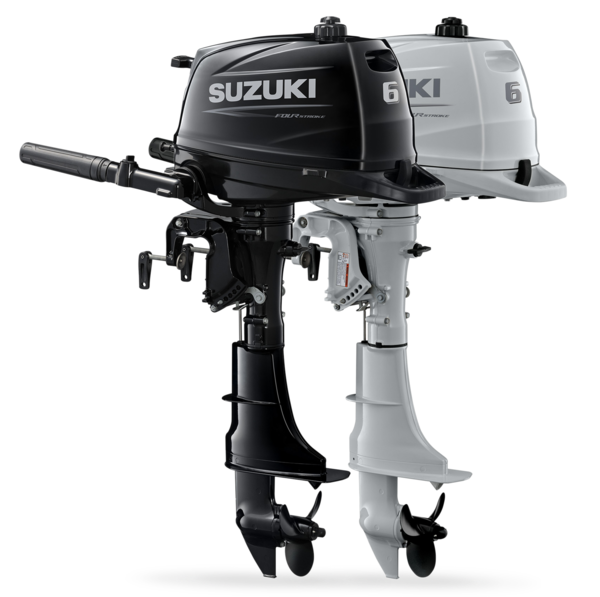

MODEL | DF6A |
---|---|
RECOMMENDED TRANSOM HEIGHT mm | S: 381, L: 508 |
STARTING SYSTEM | Manual |
WEIGHT kg *5 | S:24, L:25 |
ENGINE TYPE | OHV |
FUEL DELIVERY SYSTEM | Carburetor |
NO. OF CYLINDERS | 1 |
PISTON DISPLACEMENT cm3 | 138 |
BORE × STROKE mm | 60.4 X 48 |
MAXIMUM OUTPUT kW | 4.4 |
FULL THROTTLE OPERATING RANGE rpm | 4,750-5.750 |
STEERING | Tiller |
CHOKE | Manual |
OIL PAN CAPACITY Lit. (U.S. qt) | 0.7 |
FUEL TANK CAPACITY Lit. | Integral 1.0 |
IGNITION SYSTEM | Digital CDI |
ALTERNATOR | 12V 5A (Option) |
ENGINE MOUNTING | Bushing Type |
TRIM METHOD | Manual Trim and Tilt |
GEAR RATIO | 1.92:1 |
GEAR SHIFT | F-N-R |
EXHAUST | Above Prop Exhaust |
PROPELLER SELECTION (Pitch) *6 All propellers are the 3-blade type | 6-7 |
MODEL | DF4A |
---|---|
RECOMMENDED TRANSOM HEIGHT mm | S: 381 |
STARTING SYSTEM | Manual |
WEIGHT kg *5 | S:24 |
ENGINE TYPE | OHV |
FUEL DELIVERY SYSTEM | Carburetor |
NO. OF CYLINDERS | 1 |
PISTON DISPLACEMENT cm3 | 138 |
BORE × STROKE mm | 60.4 X 48 |
MAXIMUM OUTPUT kW | 2.9 |
FULL THROTTLE OPERATING RANGE rpm | 4.000-5.000 |
STEERING | Tiller |
CHOKE | Manual |
OIL PAN CAPACITY Lit. (U.S. qt) | 0.7 |
FUEL TANK CAPACITY Lit. | Integral 1.0 |
IGNITION SYSTEM | Digital CDI |
ALTERNATOR | 12V 5A (Option) |
ENGINE MOUNTING | Bushing Type |
TRIM METHOD | Manual Trim and Tilt |
GEAR RATIO | 1.92:1 |
GEAR SHIFT | F-N-R |
EXHAUST | Above Prop Exhaust |
PROPELLER SELECTION (Pitch) *6 All propellers are the 3-blade type | 6-7 |
MODEL | DF5A |
---|---|
RECOMMENDED TRANSOM HEIGHT mm | S: 381 |
STARTING SYSTEM | Manual |
WEIGHT kg *5 | S:24 |
ENGINE TYPE | OHV |
FUEL DELIVERY SYSTEM | Carburetor |
NO. OF CYLINDERS | 1 |
PISTON DISPLACEMENT cm3 | 138 |
BORE × STROKE mm | 60.4 X 48 |
MAXIMUM OUTPUT kW | 3.7 |
FULL THROTTLE OPERATING RANGE rpm | 4.500-5,500 |
STEERING | Tiller |
CHOKE | Manual |
OIL PAN CAPACITY Lit. (U.S. qt) | 0.7 |
FUEL TANK CAPACITY Lit. | Integral 1.0 |
IGNITION SYSTEM | Digital CDI |
ALTERNATOR | 12V 5A (Option) |
ENGINE MOUNTING | Bushing Type |
TRIM METHOD | Manual Trim and Tilt |
GEAR RATIO | 1.92:1 |
GEAR SHIFT | F-N-R |
EXHAUST | Above Prop Exhaust |
PROPELLER SELECTION (Pitch) *6 All propellers are the 3-blade type | 6-7 |
*5:Dry weight: not including propeller and engine oil
*6:Please inquire at your local dealer for details of the propeller
The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
